Inspired by Raglan’s wild beauty, the Raglan collection captures the calm rhythm of the ocean and natural textures shaped by the coast and surrounding mountains.

This light bar takes its shape from the peaks of Mt. Karioi in Raglan, bringing a little piece of the mountain into your home.

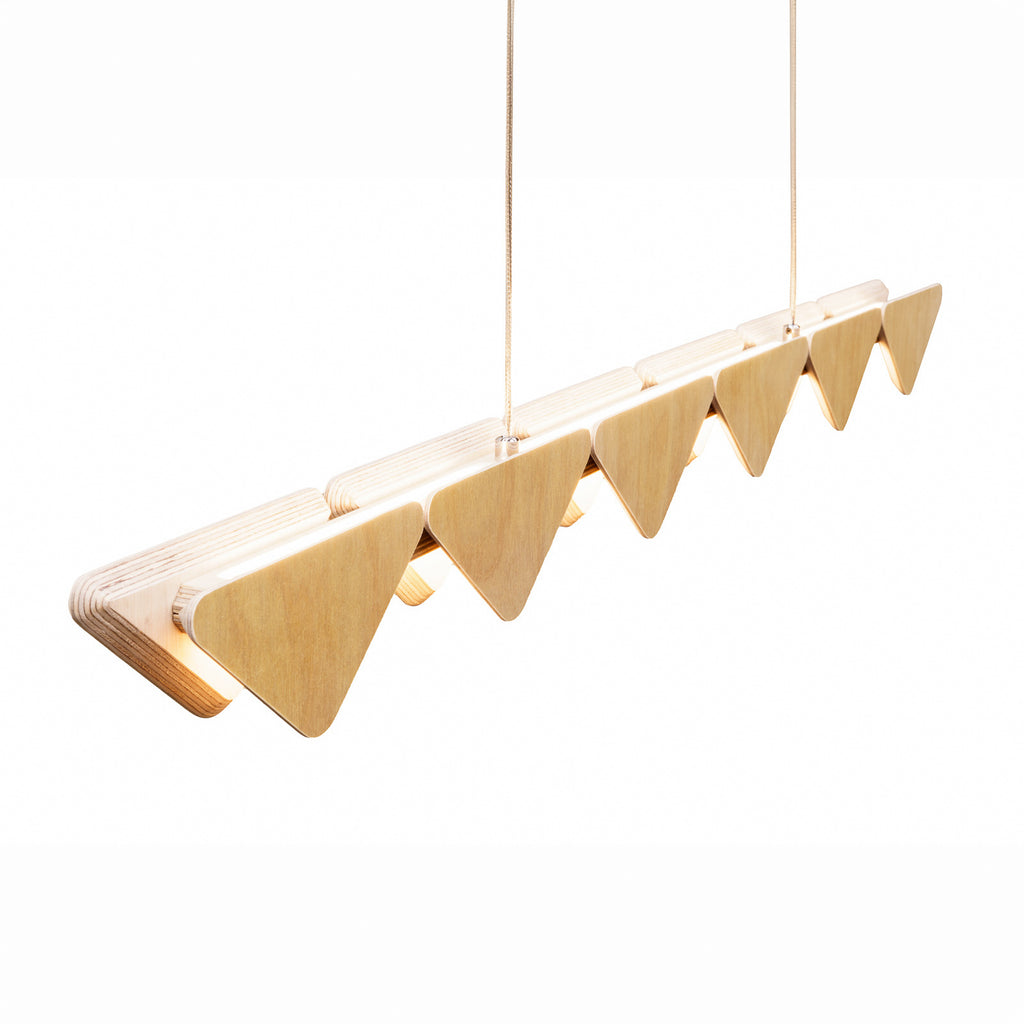

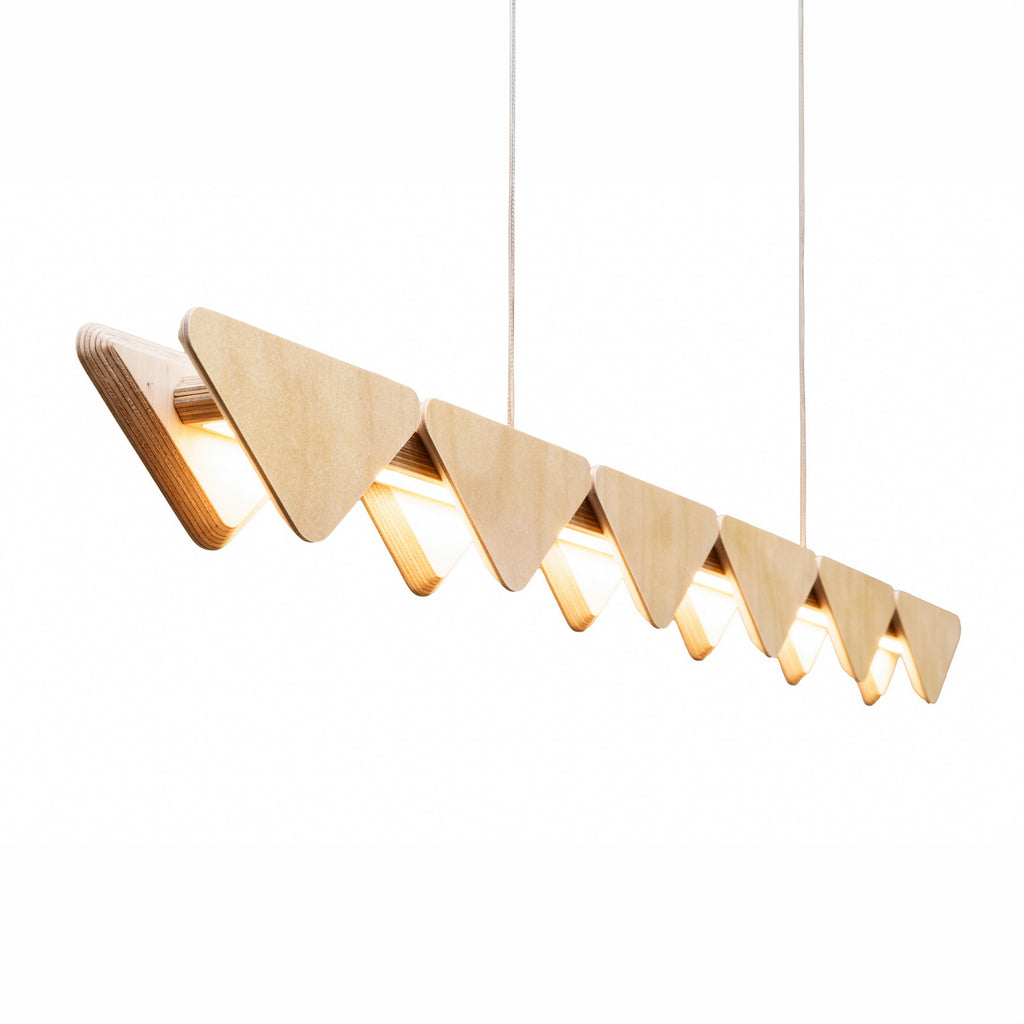

This LED bar light is inspired by Mt. Karioi, with its bold triangular fins echoing the mountain’s striking ridgelines. The natural timber and warm glow capture the balance of strength and calm you feel when the sun sets over the Raglan coast.

DIMENSIONS

• 1500 L x 50 H x 50 D
• 1800 L x 50 H x 50 D
• 2000 L x 50 H x 50 D
• 2200 L x 50 H x 50 D

WHAT YOU RECEIVE

• Plywood retrofittable enclosure for transformer or a circular steel ceiling mountable adjustable bracket.
• 24V 60 Watt Dimmable Transformer
• LED Raglan Light Bar
• 6x 6G Phillips ceiling screws and anchors
• Free E27 cordset.
• All electrical fittings provided are for installation by a qualified electrician.

*Note light or dimming switches are not included, see below for the type of light or dimming switch required.

ADDITIONAL INFO

• LED Light Bar comes assembled.
• All electrical fittings provided are for installation by a qualified electrician.
• Transformer has the option of being concealed in the ceiling or screwed to the ceiling in the provided plywood housing.
• One cable powers the bottom strip of led’s and the other wire powers the top strip of led’s.
• Brown cable wire = Positive
• Blue cable wire = Negative
• 2 year Warranty for transformer and LED strip
• LED Warranty Spec Sheet
• 24v Transformer Spec Sheet

Specifications

MATERIALS

We utilize 10mm veneer ply for the form pieces and structural elements of the LED Bar frame.

For heat dissipating reasons the LED strip light is housed in a aluminium channel. This effectively dissipates majority of the heat created from the LED's. Increasing the longevity of the LED's.

The cable has a clear PVC coating and wire mesh on the inside, housing a 2 core cable.

Brown cable wire = Positive

Blue cable wire = Negative

SPECIFICATIONS

Cable locks are used to lock the two cables into the LED light bar. The housing enclosure or steel bracket have adjustable cable locks.

• 3k Warm White
• Bottom Strip - 24.5 Watts per meter
• Top Strip - 9.6 Watts per meter
• 2000 Lumens per meter
• 24 Volt 60W Dimmable transformer included
• Hanging cable length is 3 meters per side
• Life Span - 50,000 hours
• Weight 2kg
• Includes a free E27 cordset

Shipping

Please allow 2-3 weeks for production lead-time.

Free New Zealand shipping.
